Oase Aquamax Eco Classic 14500

Product Description

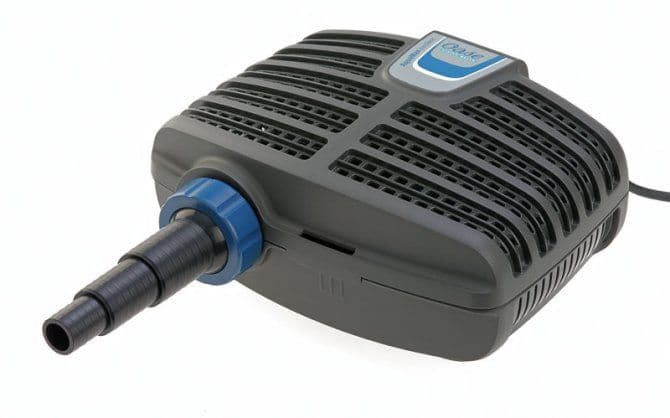

Oase AquaMax Eco Classic 14500

Completely redesigned: The classic – the entry level class of filter- and watercourse pumps from OASE.

A totally new form: Thanks to organic design, it can be integrated in ponds and watercourses, almost invisibly
Uncomprisingly reliable: With high cleaning force, it pumps pond water and coarse debris particles, up to 8 mm in size into a filter.
Suitable for use on swim ponds and bathing ponds
Included in the scope of delivery: Special hose adapter with threaded collar for different hose sizes.
Extremely economical: Thanks to the energy-efficient EC motor, the AquaMax Eco Classic saves power – and money – in operation.
»Environmental Function Control« (EFC by OASE)* protects against dry run and blocking)

Dimensions (L x W x H) (mm) 280 x 230 x 130
Rated voltage 220 – 240 V / 50 Hz
Power consumption 135 W
Power cable length (m) 10,00
Net weight (kg) 5,00
Guarantee*G (+ request guarantee) 3 + 2
Max. flow rate (l/min.) 227
Max. flow rate (l/h) 13600
Max. head (m) 3,40
Connection, pressure-side 1 1/2"
Connection, suction-side 1 1/2"
Connection for hoses 1", 1 ¼", 1 ½"
Filter intake surface (cm²) 810
Coarse debris displacement, max. (mm)8
Electronic adjustment No
Suitable submersed or dry-installed

See www.youtube.com/watch?v=bxgtjH-w2mc for more information


The completely reworked, reliable and energy-efficient classic is the ideal partner for entry in the garden pond theme. The pumps supply water to watercourses and waterfalls with maximum efficiency. They also powerfully convey heavily contaminated water into a filter.


THE CLASSIC - NOW COMPLETELY REDESIGNED:
All AquaMax Eco Classic pumps are presented in a new, organic design that can be integrated almost invisibly in ponds and watercourses. The extended series now has powerful motors of up to 135 watts. With their specially shaped impeller, these powerhouses pump up to 14 sq m. of water per hour.


Coarse debris displacement
The large-surface wrap-around strainer allows coarse debris particles like fish waste or dead plants up to 8 mm in size to pass through.


Stepped hose adapter
With the special stepped hose adapter, 3 hose sizes can be connected on the AquaMax Eco Classic.

Be a clever saver
Thanks to the energy-efficient rotor the all-rounder effectively reduces running costs - and thus saves real money.

In addition, the “Environmental Function Control” offers sure protection in the event of dry run or a block. The pumps switch off automatically in these cases and thus prevent damage to the device. Thanks to their uncompromising reliability and high energy efficiency the proven classics are suitable for continuous operation. Implementation in swim ponds and bathing ponds is also possible.

Part No. 51109

Specifications

Brand
Oase
Condition
New
Product Code
51109
